Outdoor GPS Clock — P10 LED, Sunlight Readable 1
Time Synchronization Systems Factories and Industrial Corporate and Government Airports and Transport Healthcare Sports and Entertainment Retail and Food Courts

Outdoor GPS Clock — P10 LED, Sunlight Readable

Outdoor GPS synchronised digital clock on high-brightness P10 LED modules — readable in direct sunlight, in a waterproof MS powder-coated cabinet, holding time on an internal RTC when the satellites are hidden. Time only, or time with temperature, humidity, date and day on the same face. Single, two-, three- and four-sided, hanging or wall mount, any size to order. For gates, yards, platforms, stadiums, campuses and public spaces.

About this product

The Outdoor GPS Clock is the weather-facing member of our GPS clock range. Where the indoor clocks use seven-segment LED digits, this model is built on P10 LED modules — the same high-brightness outdoor LED technology used on scoreboards and highway signs — so the time stays legible with the afternoon sun on the face. The cabinet is MS powder-coated and sealed against rain and dust, with treated cable entries, for a security gate, a yard, a railway platform, a stadium stand, a campus quadrangle or a toll plaza. Time comes from GPS satellites, so every clock on the site reads the same second without any wiring between them and without touching your network; an internal real-time clock keeps it running through a lost GPS fix or a power cut. Because the face is a dot-matrix, it can show more than the time: a temperature and humidity sensor built into the clock puts live T and RH on the second line, and date and day can share the face — the layout in the photographs is one of several, and the lines, labels and digit heights are configured to the site. One face, or two, three or four faces back-to-back on a hanging or wall mount, so a clock in the middle of a yard reads from every direction. Designed and manufactured in Bengaluru; installed across India.

Key features

  • P10 high-brightness LED modules — readable in direct sunlight, day and night
  • Waterproof MS powder-coated cabinet with sealed cable entries — rain, dust and heat
  • GPS synchronised: every clock on the site shows the same satellite time, no wiring between clocks
  • Internal RTC keeps time through a lost satellite fix or a power cut
  • Optional built-in temperature and humidity sensor — live T and RH on the face
  • Date and day display on the same face (DD-MM-YYYY, weekday)
  • 12 / 24-hour, HH:MM or HH:MM:SS
  • Single, two-sided, three-sided or four-sided — reads from every direction
  • Hanging or wall mount; custom sizes and digit heights to order
  • Lines, labels and layout configured to the site — one, two or three lines of information
  • No network, no PC and no subscription; nothing to set after installation
  • Designed and manufactured in Bengaluru; installed and serviced across India

Applications

Factory gates, yards, loading bays and shift-change pointsRailway platforms, bus terminals, metro concourses and toll plazasStadiums, sports grounds, swimming pools and athletics tracksAirports — apron, car parks and landside public areasIT and university campuses — quadrangles, parking and walkwaysHospital exteriors, ambulance bays and OPD entrancesPharma and warehouse loading docks where temperature and humidity must be visiblePetrol pumps, ports, mines and construction sitesTemples, parks, town squares and public buildingsSchools and parade grounds
Variants by application

4 Outdoor GPS variants — engineered to the environment.

The same engineered core, packaged for the environments where accurate, uniform time is non-negotiable.

Time-Only Outdoor Clock

HH:MM:SS · single line · gates & platforms

One line, one job: the time, large, in the sun. HH:MM:SS or HH:MM on P10 modules in a sealed cabinet, GPS-synchronised, for a gate, a platform or a stadium stand where everybody needs the same second.

Six-digit HH:MM:SS or four-digit HH:MM, 12 / 24-hour
GPS sync with RTC hold-over — correct after a power cut, no setting ever
Single or double-sided for a gate; four-sided on a hanging mount for a yard
Digit height to the reading distance — see the sizing table on the GPS clock hub

Typical applications

Security gates and time-office wallsRailway and metro platforms, bus terminalsStadium stands and athletics tracks

Time + Temperature + Humidity

Built-in T / RH sensor · two lines

The time on the top line and live temperature and relative humidity beneath it, from a sensor built into the clock. The board a loading dock, a warehouse apron, a sports ground or a plant entrance keeps running all day — the conditions on the wall, not in a logbook.

Built-in temperature and humidity sensor; readings refresh continuously
Temperature in °C (°F on request), humidity in % RH
Same GPS-synchronised time on the top line
Two-sided or four-sided for open yards

Typical applications

Pharma and food loading docks, warehouse apronsSports grounds, swimming pools and training fieldsPlant entrances, ports, mines and construction sites

Time + Temperature + Date & Day

Three lines · T / RH · DD-MM-YYYY · weekday

Everything a public clock is asked for on one face: time, temperature and humidity, and the date with the day of the week. For campuses, hospital entrances, town squares and public buildings where the clock is also the calendar.

Three-line face: time, T / RH, date and day
Date format and day language to order
Lines can be reordered or swapped for a site message
Hanging four-sided or wall two-sided

Typical applications

University and IT campuses, parade groundsHospital exteriors and OPD entrancesTemples, parks, town squares and public buildings

Custom Outdoor Clock

Any size · any faces · any information

A clock built to a drawing: a longer face, taller digits, a fourth line, a site name, a different colour, or more faces on one mount. Same P10 modules, same GPS sync, same sealed cabinet.

Any width, height and digit size from the same P10 modules
Single to four-sided; hanging, wall or pole mount to order
Site name, message line or logo on the face
Red standard; other LED colours on request
Pairs with the indoor GPS clocks and the master–slave system so the whole site reads the same second

Typical applications

Stadium and arena clocks built to the venueTransport hubs needing a clock visible from four directionsCorporate campuses wanting the clock to carry the company name
Built for outside

Two jobs an indoor clock never has: survive the weather, and beat the sun.

The outdoor clock is a different instrument from the indoor range — same satellite time, different display, different cabinet. Here is what changes.

Readable with the sun on it

Indoor clocks use seven-segment LEDs; they wash out outdoors. This clock uses P10 LED modules — the high-brightness outdoor technology behind scoreboards and highway signs — so the digits hold their contrast in direct afternoon sunlight and are not blinding after dark.

Sealed against monsoon and dust

An MS powder-coated cabinet, sealed at the seams, with treated cable entries. Rain, dust, heat and the salt air of a port are what it is specified for, not adapted to.

GPS time, nothing to set

Each clock carries its own GPS receiver and shows satellite time. Put one at the gate and one in the yard and they read the same second with no cable between them and no connection to your network. An internal RTC carries the time through a lost fix or a power cut.

Weather on the face

A temperature and humidity sensor built into the clock puts live T and RH on the second line — the conditions at the dock, the ground or the gate on the wall, not in a logbook. Date and day can share the face too.

Reads from every direction

One face on a wall, or two, three or four faces back-to-back on a hanging mount in the middle of a yard, a concourse or a ground — whichever way people approach, they see the time.

Built to the reading distance

The P10 face is built to the size the distance needs — a short gate clock or a stadium-scale board — with the lines, labels and digit heights configured to the site. The sizing table on the GPS clock hub gives the distance per digit height.

Digit height against reading distance, and the choice between independent clocks and a master–slave system, are on the GPS digital clock hub.

Three faces

Time alone, time with weather, or time with weather and the date

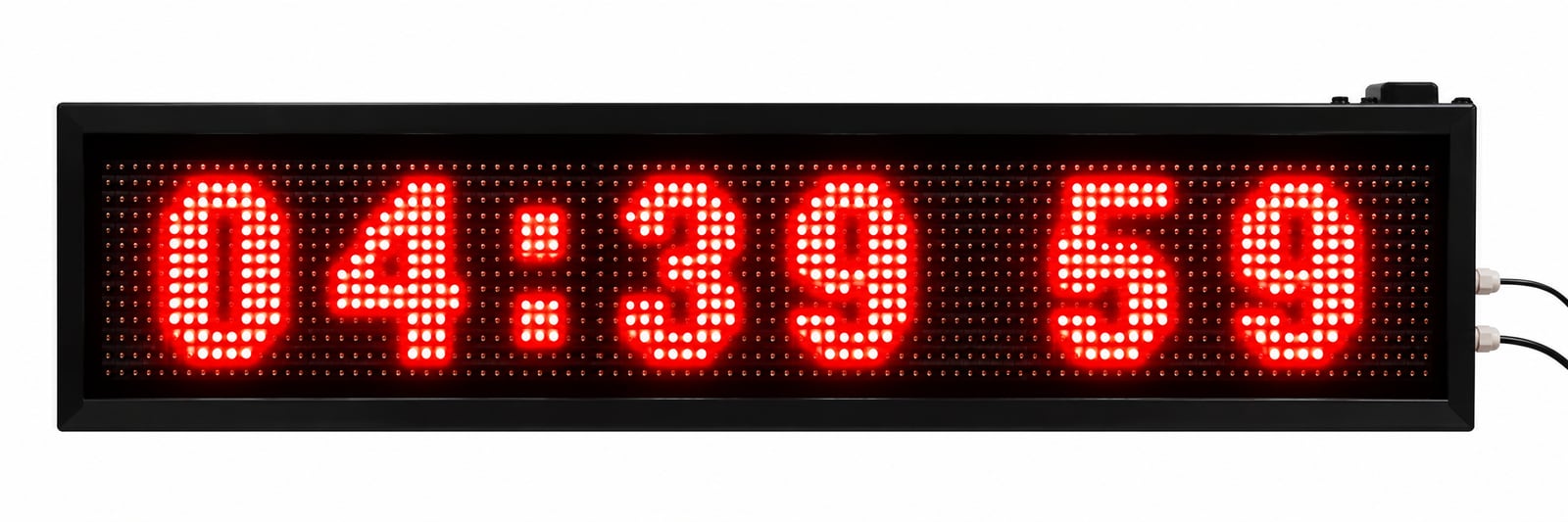

Outdoor GPS clock, single line showing 04:39:59 on P10 LED in a sealed black cabinet
Time only — HH:MM:SS, the gate and platform clock.

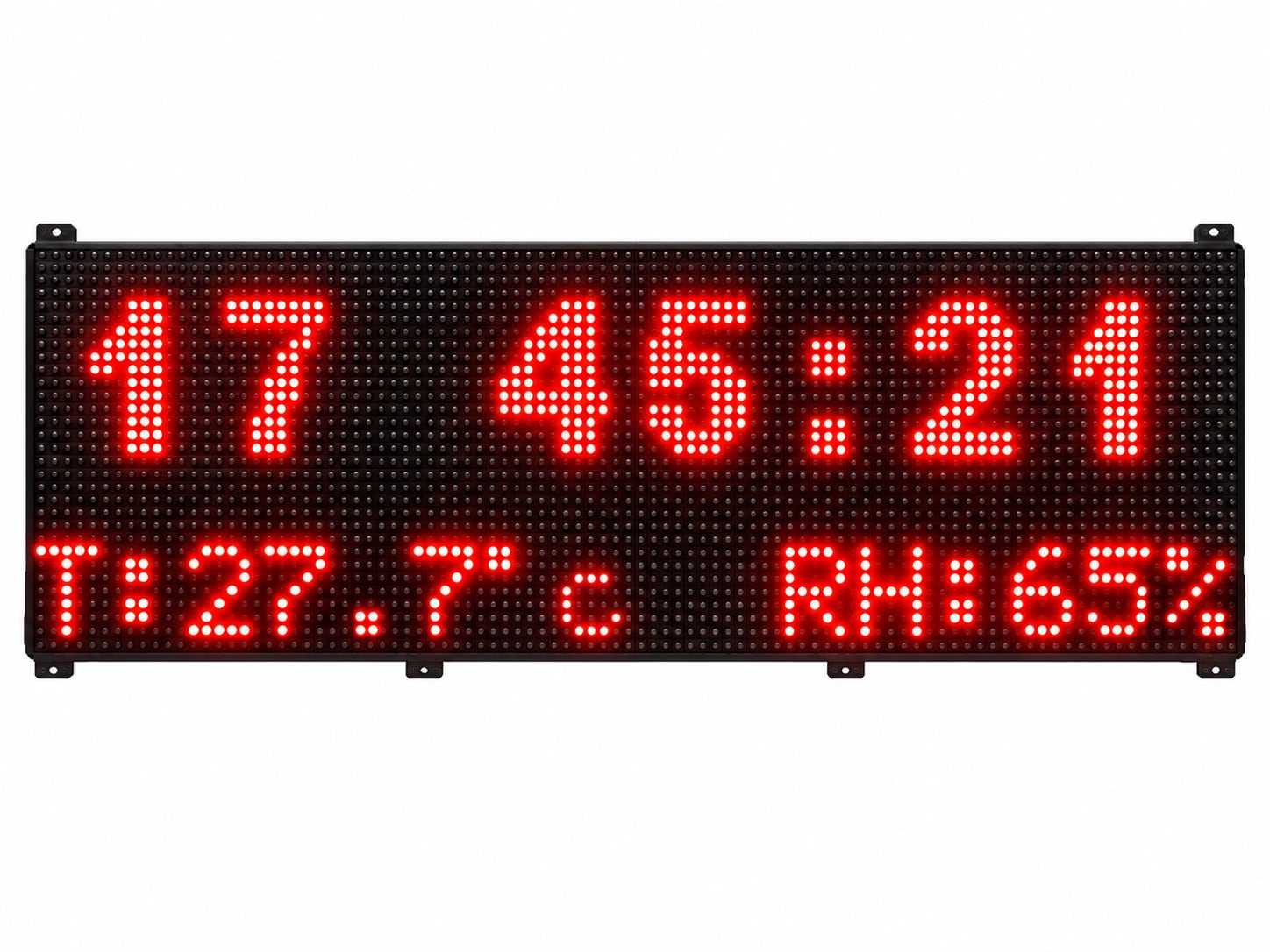

Outdoor GPS clock showing 17:45:21 with temperature 27.7 °C and humidity 65 % on the second line
Time with temperature and humidity from the built-in sensor.

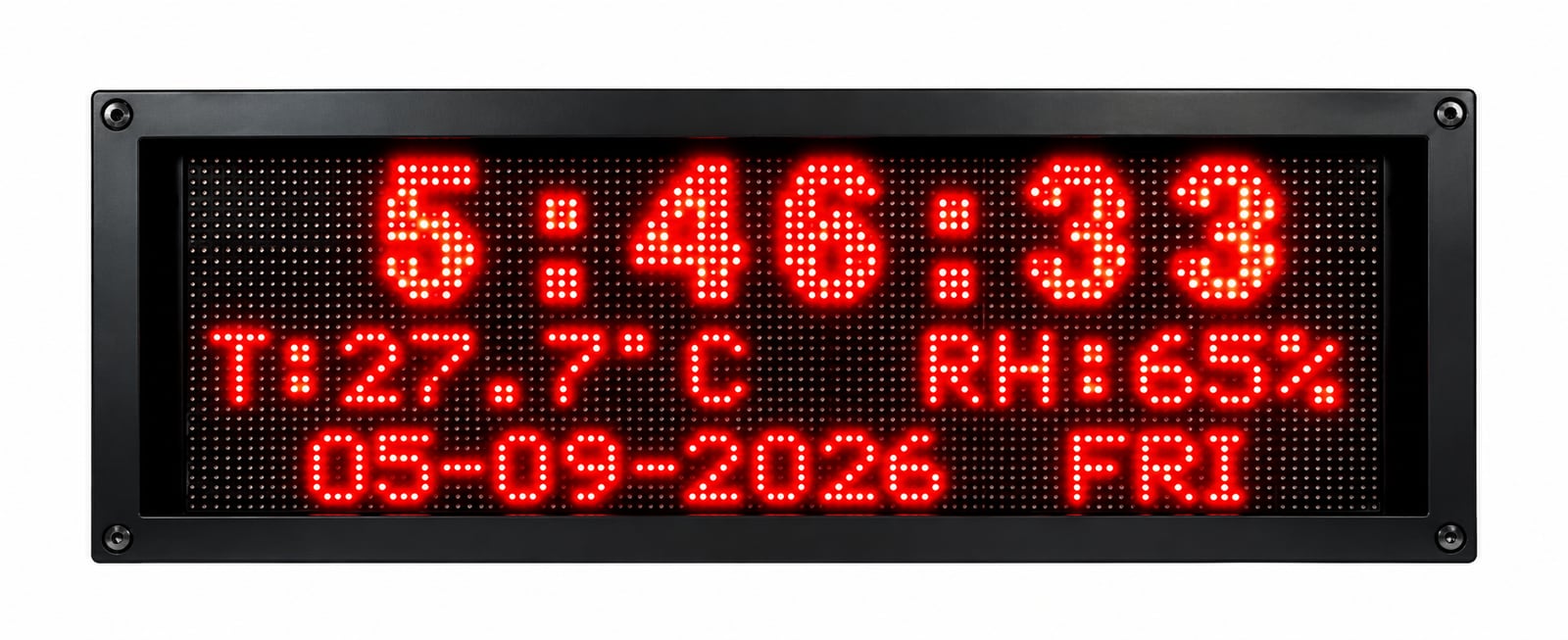

Outdoor GPS clock showing 5:46:33, T 27.7 °C, RH 65 %, and the date 05-09-2026 FRI
Time, weather and the date with day — the public-space face.
Where it goes up

Wherever the clock everybody checks is outside

Factory gates & yards

Time office, loading bays, shift change.

Platforms & terminals

Railway, metro, bus stands, toll plazas.

Stadiums & sports grounds

Stands, tracks, pools, training fields.

Airports

Apron, car parks, landside public areas.

Campuses

University and IT quadrangles, parade grounds.

Hospital exteriors

Ambulance bays, OPD and casualty entrances.

Docks & warehouses

Pharma and food docks with T / RH on the face.

Pumps, ports & mines

Petrol pumps, port gates, mine entrances.

Public spaces

Temples, parks, town squares, civic buildings.

Corporate campuses

Entrance clocks that carry the company name.

Frequently asked

Outdoor GPS clock — common questions

Tell us the position, the farthest reading point and what the face should show; a specified quotation comes back within one business day.

  • Made in Bengaluru since 2001
  • ISO 9001:2015 & CE certified
  • Available on GeM
  • Installed across India
What is an outdoor GPS clock?+

A digital clock built for the outside of a building or an open space: high-brightness P10 LED modules that stay readable in direct sunlight, a waterproof powder-coated cabinet, and time taken from GPS satellites so it is always correct and never set by hand. Ours add an internal real-time clock as backup and, optionally, a built-in temperature and humidity sensor and a date-and-day line.

How is it different from your indoor GPS clocks?+

The indoor range uses seven-segment LED digits in IP20 to IP65 cabinets, which is the crispest display for a shop floor, an office or a labour room but washes out in sunlight. The outdoor clock uses P10 dot-matrix LED modules in a sealed outdoor cabinet. Both take the same GPS time, so an indoor clock in the time office and an outdoor clock at the gate read the same second.

Is it readable in direct sunlight?+

Yes. P10 modules are the same outdoor LED technology used on scoreboards and highway signs, chosen for exactly that. The face holds its contrast with the afternoon sun on it and is not blinding at night.

Is it waterproof?+

Yes. The MS powder-coated cabinet is sealed against rain and dust with treated cable entries, built for monsoon, heat and coastal air. Tell us the position — under an awning, fully exposed, on a pole in a yard — and we specify the mount and the cabling accordingly.

What happens if the GPS signal is lost or the power fails?+

The clock keeps time on its internal real-time clock. When the satellite fix returns it re-synchronises automatically; after a power cut it comes back showing the correct time. There is nothing to reset.

Can it show temperature and humidity?+

Yes. A temperature and humidity sensor can be built into the clock, and the readings show live on the face — typically on the second line beneath the time, as T: 27.7 °C and RH: 65 %. It suits loading docks, sports grounds, plant entrances and anywhere the conditions outside matter to the people working in them.

Can it show the date and day?+

Yes. The three-line layout shows the time, temperature and humidity, and the date with the day of the week (05-09-2026 FRI). Date format and the day's language are set to order, and lines can be reordered or replaced with a site message.

How many sides can it have?+

One, two, three or four. A wall clock is usually single- or double-sided; a clock on a hanging mount in the middle of a yard, a concourse or a ground is built three- or four-sided so it reads from every direction.

What sizes are available?+

The face is built to the reading distance from standard P10 modules, so any width, height and digit size is possible — a compact gate clock or a stadium-scale board. The digit-height-to-distance table on our GPS clock hub page is the starting point; tell us the farthest point the clock must be read from.

Does it need internet, a network or a PC?+

No. Time comes from GPS satellites and the clock runs on its own. It never joins your network and needs no PC, no software and no subscription. For a site that also wants indoor clocks synchronised from one master, see the master–slave clock system.

What does an outdoor digital clock cost in India?+

It depends on the face size, the number of sides, and whether the temperature-humidity sensor and date line are included — a single-sided gate clock and a four-sided hanging stadium clock are very different builds. Send the position, the reading distance and what the face should show, and we return a quotation within one business day. Available on GeM for government and PSU buyers.
